Compact Portable Single Gas Detector CH4 , NH3 , CL2 , H2S , CO ,
O2 etc.

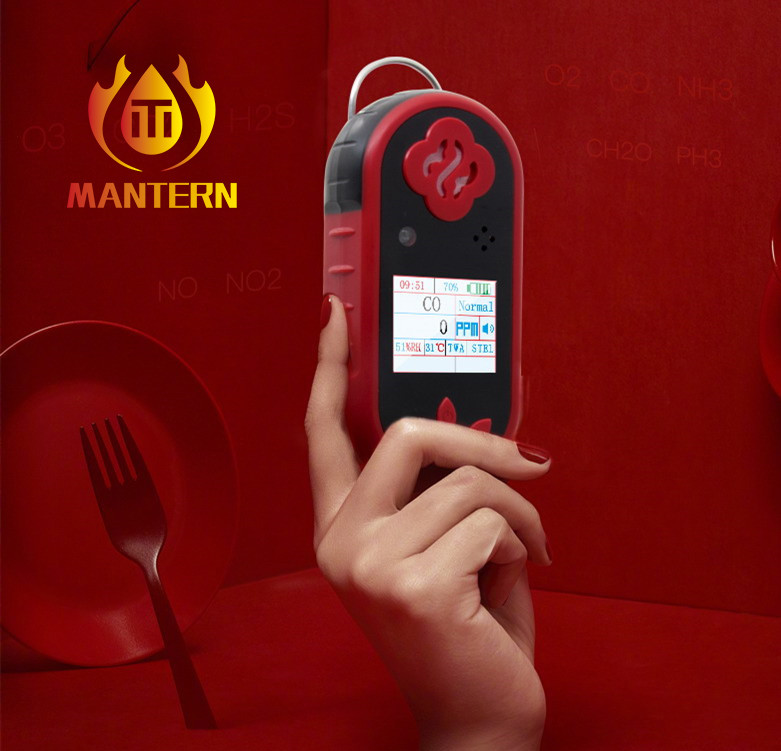

MTPG19 portable gas detector is a fast response, fixed density,
stability and repetitive imported sensor and micro control
technology. The performance of gas detector is the highest level in
the industry, and the start-up is very simple. Industrial sensor,
color screen, perfect mark of various technical indexes and gas
concentration value, dual screen conversion function, can see the
past alarm data and data saving function of trivia. The antiskid
device of rubber treatment is small in design size and convenient
to carry. Anti explosion, toxic gas leakage, underground pipeline,
mine, metallurgy, power station, chemical industry, tunnel, etc.,
effectively prevent poisoning accidents, and prevent employees and
production equipment from safety damage.

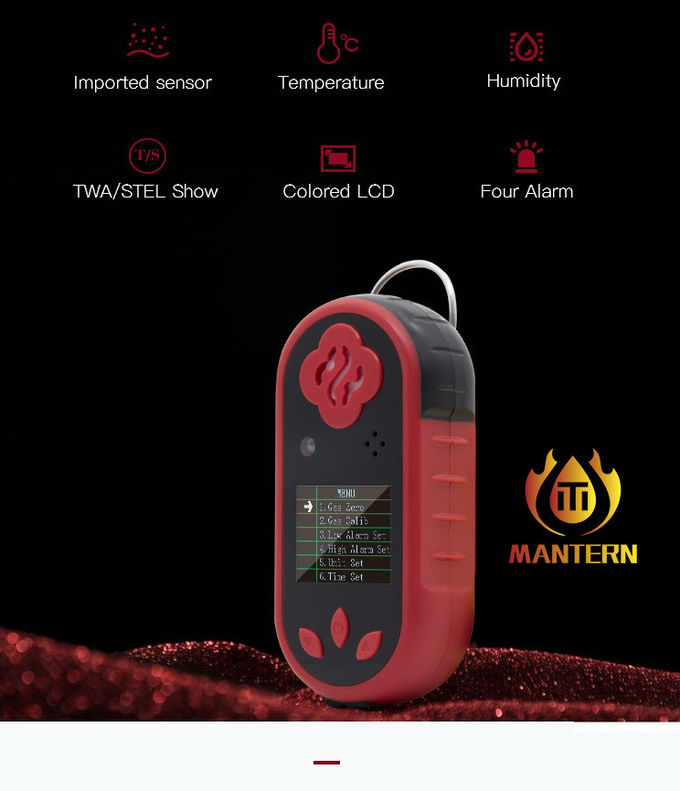

Features:
Advanced MCU control with low power consumption
Adjustable low and high alarm level
Adjustable calibrating level
High concentration protection for combustible gas
Self test for the combustible gas sensor
Low battery indication
Replaceable sensor module
Self-adjustment function
Visual and audible alarm with vibration
STEL and TWA alarming for toxic gases
Advanced self-examination and self-renovation function
Password management to avoid wrong operation
Explosive proof housing
Technical Parameters:
| Product type | Single Gas Detector |
| Sampling method | Diffusion type(Sampling pump optional) |
| Display | Large LCD |
| Alarm method | Audio, Visual LED and Vibratory |
| Working environment | -20ºC~50ºC |
| Power Supply | 3.7V Rechargeable lithium battery |
| Gas Sensor Life | 2 years |
| Charging time | Less than 5 hours |
| Data record | 1000pcs data storage |
| Working time | 8h continuously |
| Password protection | Password protection and password modification |
| Explosion-proof grade | Exib IIB T3 Gb |
| Principle | Electrochemical and Catalytic sensor |
| Additional function | Flashlight |
| Humidity | 0-95%RH (no dew) |
| Shell materia | ABS |
